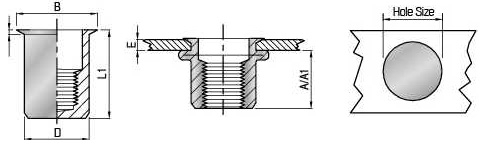

小頭圓柱不銹鋼（盲孔）
| UNIT(單位) | :mm |
|
R=Reduce/ H=Head/ R=Round/ B=Body/ C=Close/ SS=Stainless steel I | |||||
| ■紋 Thread | 編號 P/N | T(GRIP RANGE) MIN MAX | A Ref | Hole Size 40.1 0 | D +0.07 -0.1 | B | K ±0.15 | L ±0.30 |
| M4 | RH-RBC/SS-0420 | 0.5-2.0 | 11.0 | 6.0 | 5.9 | 7.0 | 0.5 | 15.0 |
| M5 | RH-RBC/SS-0520 | 0.5-2.0 | 12.5 | 7.0 | 6.9 | 8.0 | 0.5 | 16.5 |
| M6 | RH-RBC/SS-0625 | 0.5-2.5 | 15.5 | 9.0 | 8.9 | 10.0 | 0.6 | 20.5 |
| M8 | RH-RBC/SS-0830 | 0.5-3.0 | 17.0 | 11.0 | 10.9 | 12.0 | 0.65 | 23.0 |
| M10 | RH-RBC/SS-1040 | 1.0-4.0 | 18.3 | 13.0 | 12.9 | 14.0 | 0.7 | 24.5 |
