UNIT(單位):mm |

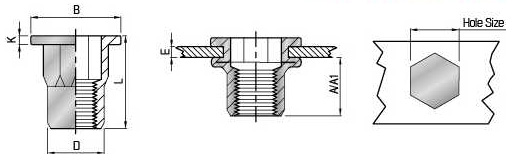

F=Flat/ H=HeadZ IH=lnner hex/ B=Body/ SS=Stainless steel |
|||||||
|
,紋 Thread |
編號(hào) P/N |
T(GRIP RANGE) MIN MAX |
3 |
Hole Size *0.1 0 |
D 40.07 -0.1 |
HB |
K ±0.15 |
L ±0.3 |
|
M4 |
FH-IHB/SS-0420 |
0.5-2.0 |
7.2 |
6.0 |
5.9 |
9.0 |
0.8 |
11.0 |
|
M5 |
FH-IHB/SS-0525 |
0.5-2.5 |
7.5 |
7.0 |
6.9 |
10.0 |
1.0 |
12.0 |
|
M6 |
FH-IHB/SS-0630 |
0.5-3.0 |
9.2 |
9.0 |
8.9 |
12.7 |
1.3 |
15.5 |
|
M8 |
FH-IHB/SS-0835 |
1.0-3.5 |
11.0 |
11.0 |
10.9 |
16.0 |
1.5 |
18.0 |
|
M1O |
FH-IHB/SS-1040 |
1.040 |
13.2 |
13.0 |
12.9 |
18.0 |
1.7 |
21.0 |
